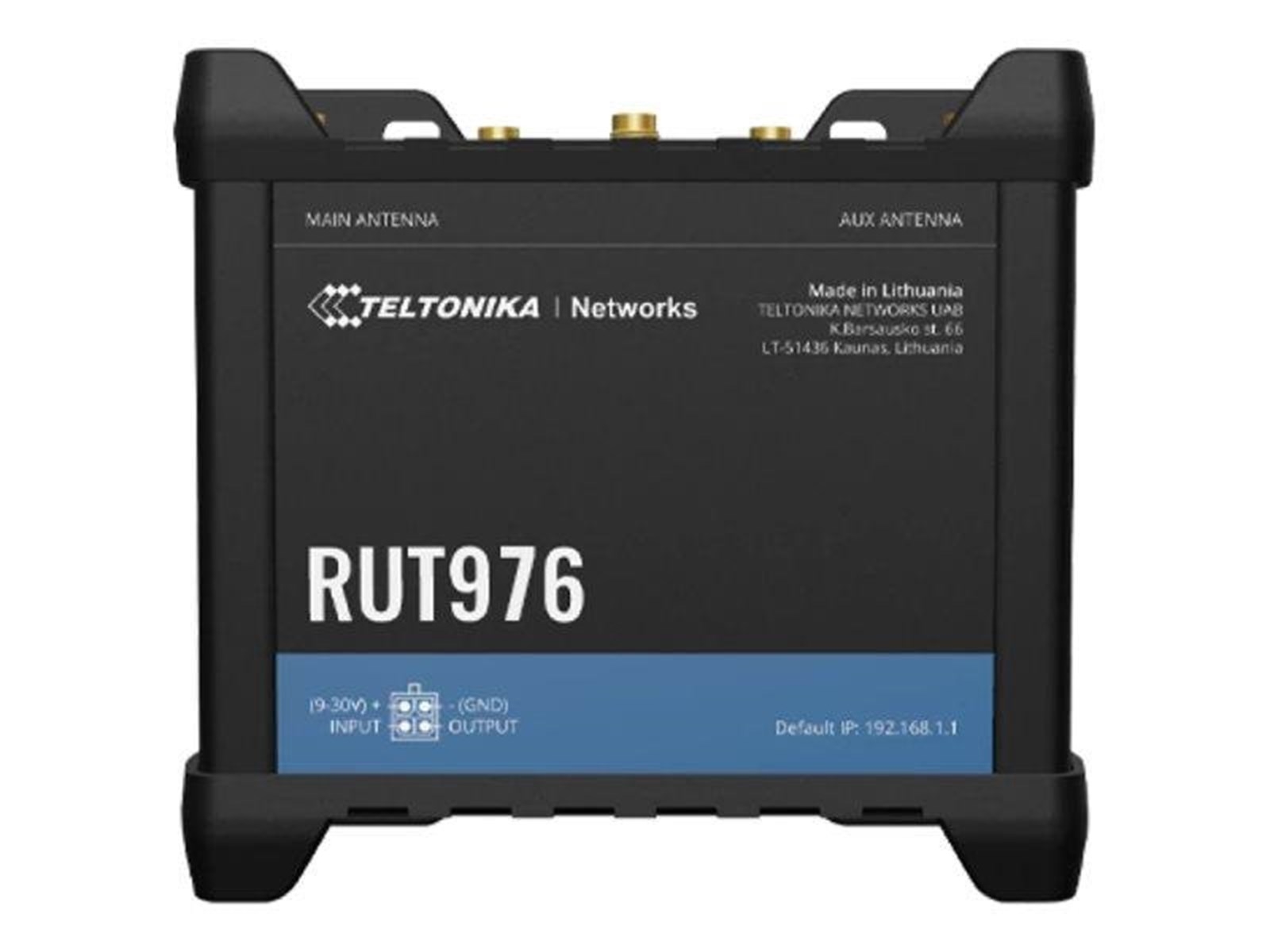

Teltonika RUT976 5G/4G/LTE Trådløs Router SortRUT976
REDCAP 5G ROUTER
The RUT976 is an industrial Redcap 5G router supporting SA architecture, carving a balanced niche between traditional 4G and full-capacity 5G. This 5G router can wirelessly support up to 100 end devices and features the low latency of 5G—at affordable pricing. In case of limited 5G coverage, the RUT976 is backward compatible with 4G LTE Cat 4. It also boasts dual SIM slots with auto-failover, Wi-Fi, GNSS, a wide range of interfaces, including four 10/100 RJ45 slots, RS232, RS485, and multiple I/Os, and numerous other brilliant features for expert professional deployment
Specifikationer:Abonnementstype: Mobile
Mobile module: 5G Sub-6Ghz SA 223 Mbps DL , 123 Mbps UL; 4G LTE Cat 4 – LTE 195 Mbps DL, 105 Mbps UL
3GPP Release: Release 17 RedCap
eSIM*: Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM switch*: Dual SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Wireless
Wireless mode: 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID: SSID stealth mode and access control based on MAC address
Wi-Fi users: Up to 100 simultaneous connections
Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC filter: Allowlist, blocklist
Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information
TravelMate: Forward Wi-Fi hotspot landing page to a subsequent connected device
Ethernet
WAN: 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN: 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
VPN
OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE: GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP: SSTP client instance support
ZeroTier: ZeroTier VPN client support
WireGuard: WireGuard VPN client and server support
Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
BACNET
Supported modes: Router
Supported connection types: RS485, TCP
Configuration options: Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)
OPC UA
Supported modes: Client, Server
Supported connection types: TCP
DATA TO SERVER
Protocol: HTTP(S), MQTT, Azure MQTT
Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
DNP3
Supported modes: TCP Master, DNP3 Outstation
Supported connection types: RS232, RS485, TCP, USB
DLMS/COSEM
DLMS Support: DLMS - standard protocol for utility meter data exchange
Supported modes: Client
Supported connection types: RS232, RS485, TCP
System Characteristics
CPU: Mediatek, 580 MHz, MIPS 24KEc
RAM: 128 MB, DDR2
FLASH storage: 32 MB, NOR Flash
Location Tracking
GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates: GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA: NMEA 0183
NTRIP: NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software: Supported server software TAVL, RMS
Geofencing: Configurable multiple geofence zones
USB
Data rate: USB 2.0
Applications: Samba share, USB-to-serial
External devices: Possibility to connect external HDD, flash drive, printer, USB-serial adapter
Storage formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
Input / Output
Input: 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
Output: 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
Events: Email, RMS, SMS
I/O juggler: Allows to set certain I/O conditions to initiate event
SD CARD
Physical size: Micro SD (internal)
Applications: Samba share, Storage Memory Expansion, DLNA
Capacity: Up to 2 TB
Storage formats: FAT32, NTFS, ext2, ext3, ext4
Power
Connector: 4-pin industrial DC power socket
Input voltage range: 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption: Idle: < 3 W, Max: < 7 W
Physical Interfaces
Ethernet: 4 x RJ45 ports, 10/100 Mbps
I/O’s: 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector
Status LEDs: 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)
Power: 1 x 4-pin power connector
Input/output: 1 x 10-pin industrial socket for inputs/outputs
Antennas: 2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
USB: 1 x USB A port for external devices
RS232: 1 x DB9 socket
RS485: 1 x 6-pin industrial socket
Reset: Reboot/User default reset/Factory reset button
Physical Specification
Casing material: Aluminum housing, plastic panels
Dimensions (W x H x D): 110 x 50 x 100 mm
Weight: 295 g
Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30
